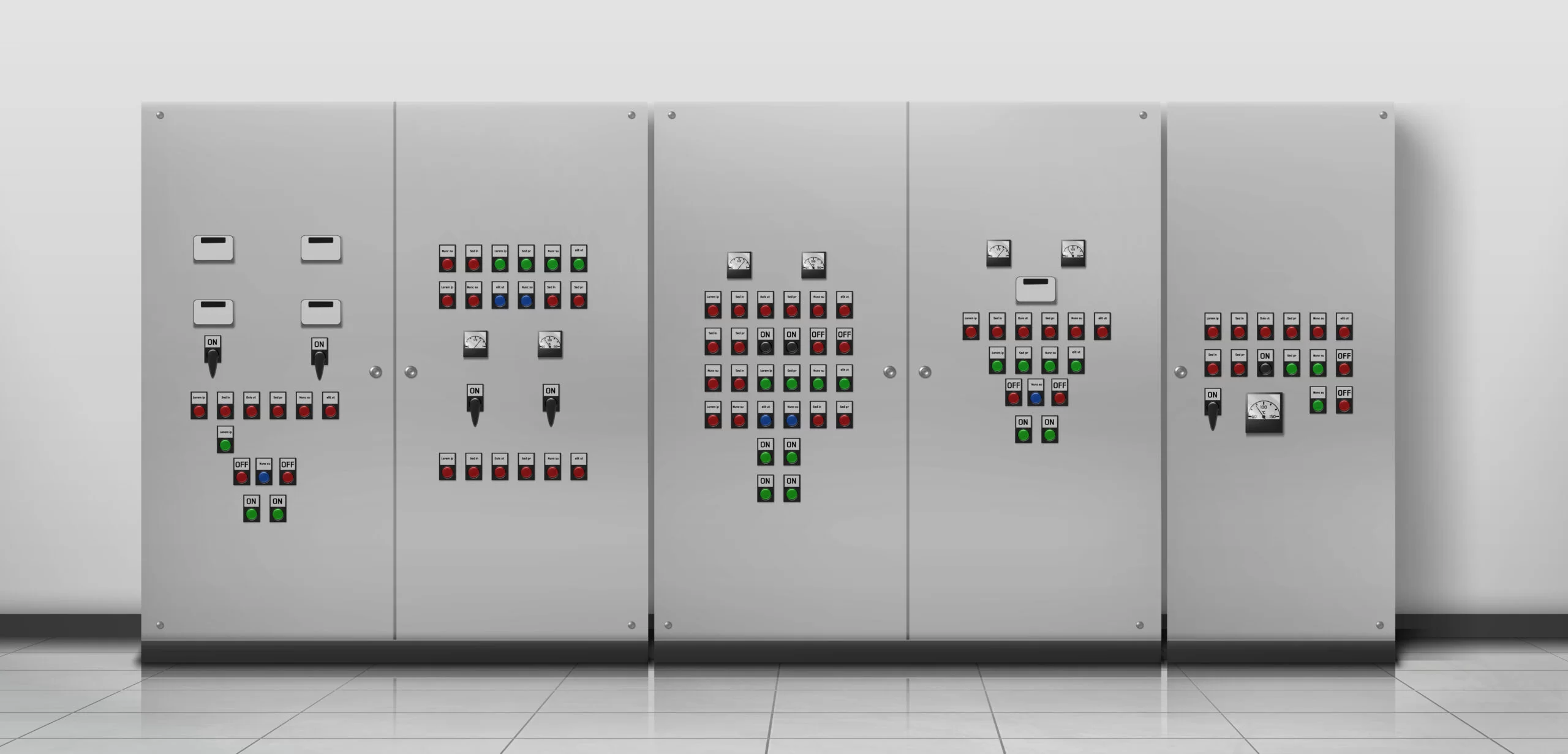

Suvarnix PCC panels are the intelligent hub of plant power—type-tested to IEC 61439 with export options—delivering monitored, stable distribution to high-load processes by ensuring reliability.

Technical Specifications

Parameter

Specification

Rated Operational Voltage (Icw)

415 V AC, 3-Phase, 50 Hz 48o V AC, 3 Phase, 60 Hz on request for export order.

Rated Insulation Voltage

690 V

Busbar Rating

Up to 5000 A (Cu/Al with optimized spacing and derating)

Short-Circuit Withstand

Up to 100 kA RMS for 1 s (design dependent)

Form of Separation

Form 2b / 3b / 4b (per IEC 61439)

Ingress Protection

IP42 / IP54 / IP55 (IEC 60529)

Enclosure

CRCA 1.6–3.0 mm, epoxy powder-coated (RAL as specified)

Earthing

Continuous PE bar ~50% of phase busbar cross-section

Standards

IS/IEC 61439-1/2; export options: UL 845 / UL 508A

Testing

Temperature-rise, dielectric, PE continuity, functional tests (per IEC 61439)

  • Service continuity design: Form 4b segregation with interlocked incomers/bus coupler for safe live maintenance.
  • Validated fault survival: Assemblies proven up to 100 kA / 1 s with verified thermal margins.
  • Upgrade-ready bus system: Field-expandable sections; hot-swappable outgoing feeders reduce MTTR.
  • Diagnostics built-in: PQ meters + gateway (Modbus/Profinet), API hooks for IoT dashboards and alerts.
  • Selective protection: ETU-based ACB/MCCB settings pack supplied to ensure discrimination and faster restoration.
  • Fabrication that lasts: CRCA 1.6–3.0 mm, epoxy powder-coat; front or rear access for compact rooms.

  • Single / Dual Incomer with Bus Coupler
  • Automatic Changeover (ACB/MCCB)
  • DG Synchronizing PCC
  • Remote monitoring via HMI/SCADA/IoT
  • Internal arc features (IEC 61641, on request)
  • Floor-mounted or wall-mounted layouts
  • Online Bus Bar Temperature Monitoring
  • Online Heat Tags monitoring
  • Online Power Quality and Relay monitoring.
  • Total Predictive Maintenance with 3 Layer Safety

  • Chemical & Process Industries
  • Pharmaceutical & Clean Utilities
  • Water/Wastewater & Utilities
  • Oil & Gas (Balance-of-Plant)
  • Automotive & Discrete Manufacturing
  • Data Centers & Infrastructure

Why Suvarnix

  • Design-to-FAT analytics report
  • Commissioning KPI pack: trip curves, coordination, fault-level study.
  • Field-expandable architecture for +25% future capacity.
  • Trusted components (ABB/Siemens/Schneider/L&T/Eaton) with global support.
  • Total Predictive Maintenance with 3 Layer Safety
  • Reliability

Reliability & Safety

Each assembly undergoes temperature-rise, dielectric, PE continuity, and functional testing as per IEC 61439. Layouts are engineered for >99.9% availability with predictive alarms for thermal hotspots and breaker stress. Protection selectivity and settings are delivered as a commissioning KPI pack to ensure rapid fault isolation and faster plant recovery.
